The advantages of The four-in-one combined screw unit are as follows:
1. The four-in-one unit integrates the screw compressor, refrigerated dryer, filter and air receiver tank into one, requiring no installation and being ready to use upon connection.
2. It occupies less space and saves area.

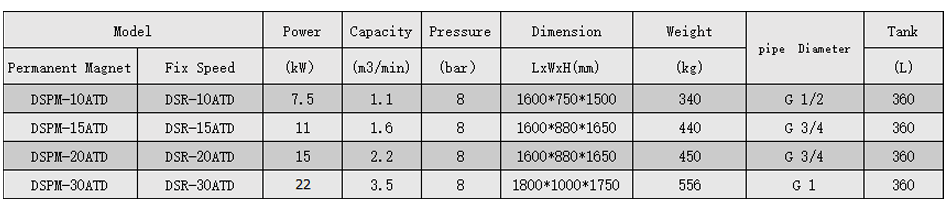

Model
|
Power
|
Capacity
|
Pressure
|
Dimension
|
Weight
|
pipe Diameter
|
Tank
|
Permanent Magnet
|
Fix Speed
|
(kW)
|
(m3/min)
|
(bar)
|
LxWxH(mm)
|
(kg)
|
(L)
|
DSPM-10ATD
|
DSR-10ATD
|
7.5
|
1.1
|
8
|
1600*750*1500
|
340
|
G 1/2
|
360
|
DSPM-15ATD
|
DSR-15ATD
|
11
|
1.6
|
8
|
1600*880*1650
|
440
|
G 3/4
|
360
|
DSPM-20ATD
|
DSR-20ATD
|
15
|
2.2
|
8
|
1600*880*1650
|
450
|
G 3/4
|
360
|
DSPM-30ATD
|
DSR-30ATD
|
22
|
3.5
|
8
|
1800*1000*1750
|
556
|
G 1
|
360
|
The advantages of The four-in-one combined screw unit are as follows:
1. The four-in-one unit integrates the screw compressor, refrigerated dryer, filter and air receiver tank into one, requiring no installation and being ready to use upon connection.
2. It occupies less space and saves area.
